2021 Guidelines for Best Tennis Court Lighting

From Backyards to Professional Center Courts – We have the tennis lights You Need

The required tennis court lighting standards for illuminating tennis courts changes based on the standard of play ranging from recreational to professional levels. Tennis facilities must provide an even distribution of tennis lights to provide a well-lit playing area for both the players and spectators.

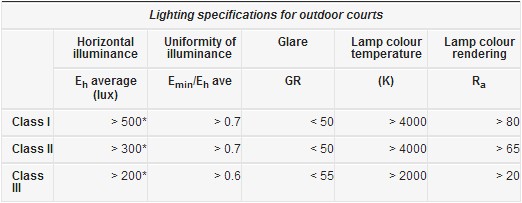

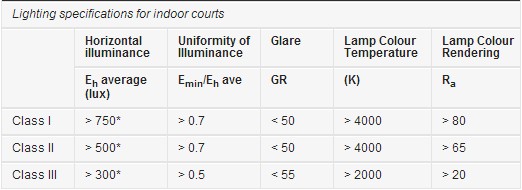

Standard of Play

Class I: International & National

• High level for international/professional grade – 500 lux.
• Top level of competitive playing for a large amount of spectators.
• Facilities generally include broadcasted tennis matches such as U.S. Open, Wimbledon, etc.

Class II: Club Competition & Commercial

• Medium level for club standard – 300 lux
• Mid-level competition, high level training, average viewing distances
• May include collegiate facilities primarily used for intercollegiate or recreational play

Class III: Recreational & Residential

• Lower level of play or recreational play – 200 lux
• Low- level competition, local, general training, school teams or recreational activities

Tennis Organization Lighting Requirements for Professionals

The Association of Tennis Professionals (ATP) requires a standard of tennis court lighting for professional play and breaks down the requirements into two classifications: World Tour and Challenger Tour tournaments.

ATP World Tour Tournaments
For world tour tournaments, the tennis court lighting must be evenly distributed on the court with a minimum light intensity of 100-foot candles (about 1076 lux). For televised matches, the minimum lighting level should average about 285-foot candles (about 3,067 lux).

ATP Challenger Tour Tournaments
For challenger tour tournaments lighting must be evenly distributed on the court with a minimum light intensity of 70-foot candles (about 750 lux).

Requirements of Tennis Court Lighting
When the tennis court lighting solution is being designed, the requirements of tennis court lighting must be concentrated on. Here are some of the requirements you need to pay attention to.

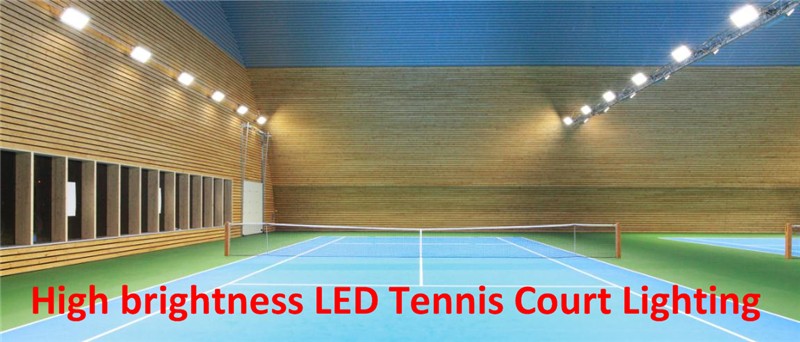

1.Brightness of tennis court lighting
The first requirement of the tennis court lighting is the brightness. The court needs to be well-lit to ensure the proper vision for the players and spectators. There are many courts using HID lights to light up the whole space. They might be cheap but extra lights need to be installed.

The LED tennis lights are a better option as they provide more brightness levels in comparison to HID lights. In the technical aspect, the maximum power of the LED tennis lights in 10,000 watts while the power of metal halide can reach only up to 1,500 to 2,000 watts.

2.Efficiency of tennis court lighting
Another requirement for the tennis court lighting is its efficiency. Since the light will be turned on for most of the day, it costs a lot on the energy bills. This is where led tennis court lighting comes in handy; they are known for their energy efficiency.
For determining the efficiency of the light, luminous efficacy is used. The unit used to measure the efficacy is lm/W, where lm stands for lumen. Keep in mind, higher the lumen, higher is the brightness.
Led tennis court lighting have 120 to 150 lm/W, metal halide has 75 to 100 lm/W, HPS has 90 to 100 lm/W, and halogen has 10 to 20 lm/W. This shows for 1 wattage of power consumption, Led tennis court lighting will emit 150 lumens. So, LED tennis lights will save more electricity than any other lighting solution.

3.Life Span

One of the most important requirements you should pay attention to is the life span of the light. Since the courts are open late till night, the lights must have a long service life. If the light has a short life span, it will lead to frequently replacing the lights. This not only increases the cost of maintenance and replacement but also increases operation costs as well. The installation cost of the field lighting is high.
LED tennis lights have a long service life as they can last for up to 80,000-100,000 hours. On the other hand, the halogen light will only last for 2000 hours while metal halide can last up to 10,000 hours. Hence, LED tennis lights provide the best performance.

Things to Consider When Buying LED Tennis Court Light
When it comes to buying the best LED tennis lights for a tennis court, you need to consider plenty of factors. Here are the things you need to consider.
1.Waterproof

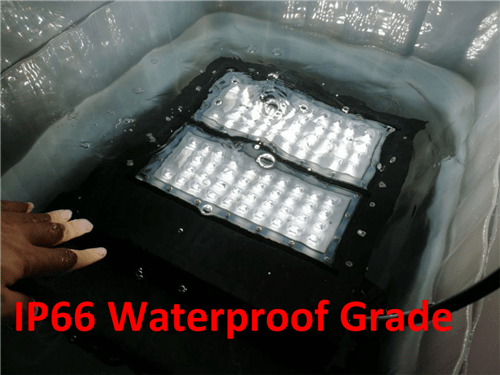

One of the first things you need to focus on is the waterproof properties of the led tennis light. It is crucial for the light to be good waterproof and have at least IP65 for outdoor use. In this way, you can use these lights anywhere. LED tennis lights can have a waterproof function without any hassle because it doesn’t contain gas discharge, brittle glass, or filament.

2.High Luminous Efficacy
To reduce the maintenance cost, you must select a durable and quality LED tennis light. For choosing efficient LED tennis lights, you have to select luminaire with high efficiency. This means it will use low power and less quantity of light.

3.Wide Range of Color Temperature

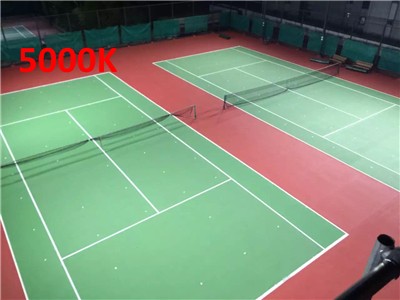

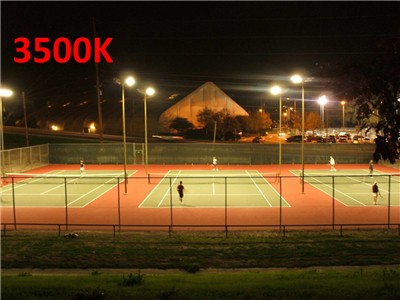

In order to buy the right led tennis court lighting, you have to consider the color temperature of the tennis lights. It is recommended to use cool white like that has 5000 to 6000K. Some tennis courts require warm light with a color temperature of 2800 to 3500K.

4.Anti-glare Feature
One of the most important features of the LED tennis court lighting is the anti-glare function. The glare is the strong light that causes irritation or discomfort. Our LED tennis lights have an anti-glare lens that reduces the dazzling effect and makes it easy to see things.

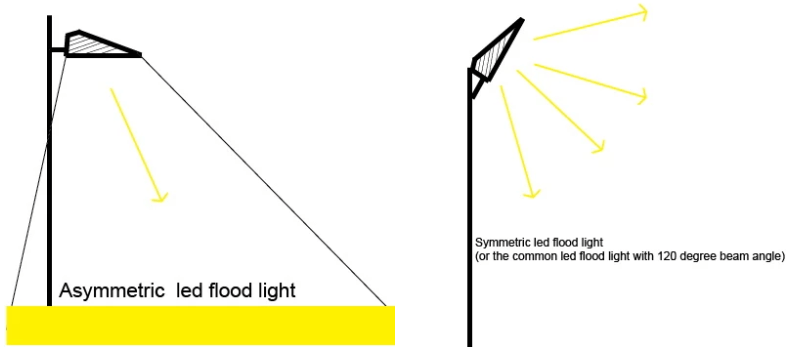

Good light for player and audience eyes                      Dizzy light for player and audience eyes

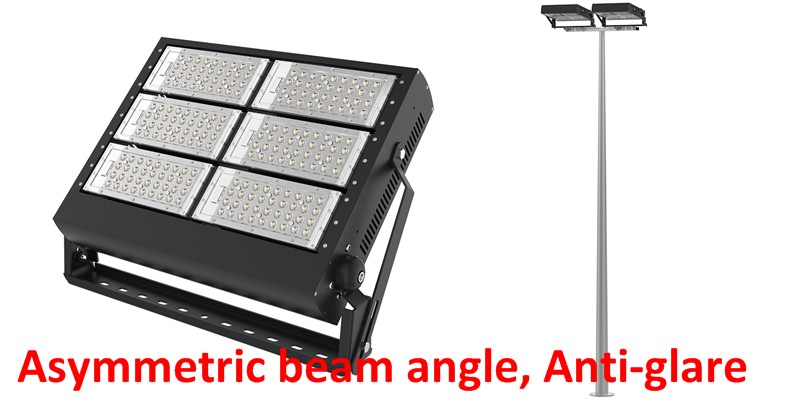

Our asymmetric tennis court lighting with various beam angle to meet different tennis court requirement.

6.High Light Uniformity
To brighten up the tennis court, high light uniformity is critical. This shows the ratio between minimum lux to maximum lux. Mostly, 0.6 to 0.7 light uniformity is adequate.

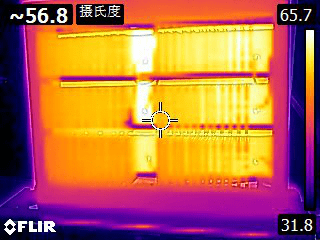

5.Heat Dissipation
Another important factor is the heat dissipation. It is fatal for indoor tennis fields; this is because the life span of the light might decrease if the heat is trapped inside.

7.Easy for Installation
LED tennis lights are easy for installation as you will not need professional help or advance equipment.
8.Modularization Design
LED lights should have a modular design as it makes it easy to repair the light. You will not have to remove the whole light to repair any damage.
9.Warranty
Not many people focus on the warranty of the LED tennis lights. This is a huge mistake. It is advised to look at the warranty offered by the manufacturer before buying. We offer 5 warranty for all tennis court lights.
（image）
Tennis court lighting cost

By now, you know LED tennis lights are energy-saving and cost-effective. To understand the running cost of LED tennis court lighting, for example,we use 35,000W led tennis lights for illuminating a double tennis court. You will need a 70,000W metal halide for lighting up the area.
In a day, LED tennis lights are turned on for 8 hours a day and energy cost is $0.12. In such a case, the running cost of tennis court field lights is 35000 x 0.12/ 1000 = $4.2 per day. For a month, it will cost $126. For metal halide, it will cost 70,000 x 0.12 / 1000 = $8.4 and for a month it will cost $252.
Moreover, the cost of the lamp depends on the size of the club, lux level, and pole height. For instance, the cost of lighting a single court is around $1000 to $3500 for recreational purposes. For commercial purposes, the cost will be nearly $5000 to $8000.
Conclusion
LED Lighting is very important for tennis courts. The LED tennis court lighting is the best solution now because of its high brightness, uniform illumination, energy saving, and long life. Our LED tennis court lighting product, High Mast Light, saves 70%-90% of energy compared to conventional luminaires. If you need indoor and outdoor tennis court lighting design and products, we provide LED tennis lights that are budget-friendly for both indoor and outdoor tennis courts. Kindly contact our professional sales team for more light solution by [email protected].
