Best LED Warehouse Lighting-2021 Newest Update

LED Warehouse lighting is built for big open spaces that need bright lighting like auditoriums, gymnasiums, manufacturing, sports complexes, distribution and more.  They can brighten the work floor, improve productivity, reduce maintenance and save energy. It’s time to go LED lights in your warehouse.

What we need to know before we design our warehouse light?

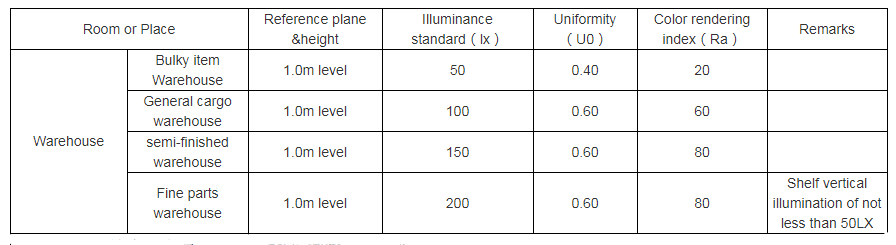

1. Warehouse Lighting Standards
The indoor environment should have adequate lux level to guarantee worker’s safety. If the warehouse lights are dim, the forklift drivers might not be able to see their colleagues and lead to tragic accident. The brightness level should be around 200 to 300 lux in loading and unpacking area, and 100 lux in storage unit.

2. Warehouse Lighting Uniformity
Some may ignore the warehouse lighting uniformity requirement. Imagine if the area is full of dim and bright spot, the workers’ eyes may feel uncomfortable and their productivity will decrease. Most importantly, this improper warehouse lighting will cause industrial accident because the workers cannot see clearly the heavy-duty vehicles and the uneven ground. Contact our engineers for the lighting simulation software DIALux, the ground lux level inside warehouse can be estimated before the installation.

3. Luminary Spacing Inside the Storage Unit
Before designing the warehouse light, we need to look at the distance between the shelves and the height of ceiling and then plan the proper warehouse lamps lighting arrangement. If the warehouse lamps are placed just above the shelves, majority of warehouse lights will be blocked and the shadow will be significant. To achieve the best outcome, our lighting designer will observe the floor plan of your storage unit, and then recommend the best lighting arrangement.

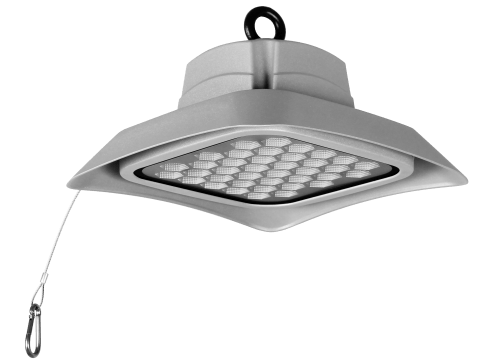

4. Types of Warehouse Lighting Fixtures
We offer led flood lights, high bay light and linear lights for loading area, logistic center and other areas inside warehouse. We design the best warehouse lighting solution for your application according to your requirement.

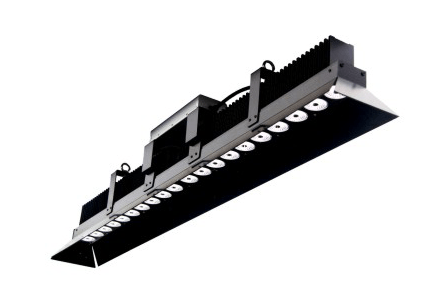

LED Warehouse Lighting Specification
Rectangular shape make it easier to light on rectangular working area, aisle, hallway and other rectangular area.

5.Control System of Warehouse Lights
Our LED warehouse lighting supports DMX and DALI Dimming system, which gives user-friendly control of warehouse light brightness. We can also group the warehouse lamps and turn them on/off at once. Radar sensor can also be used to dynamically adjust the warehouse lamps brightness if the indoor environment is too dim or bright, help with efficiency, cutting the amount of power used when there is no motion or need for light.

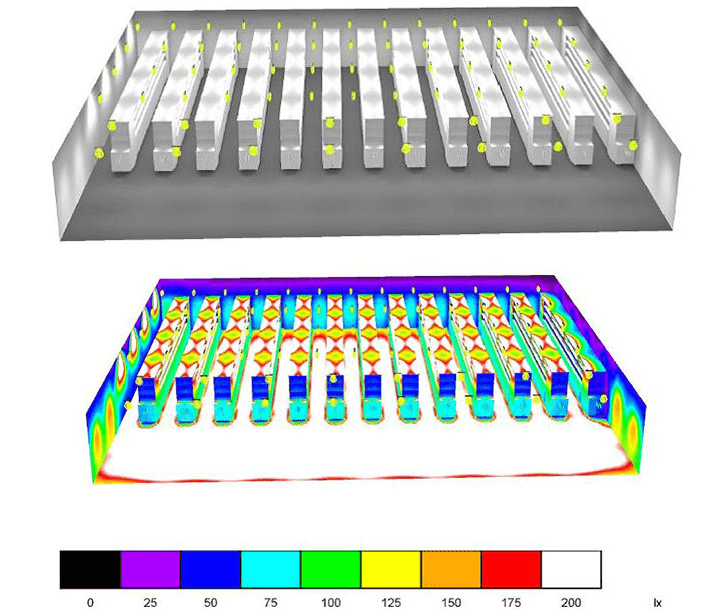

Warehouse Lighting Solutions,FREE Dialux
Plan, calculate and visualize lighting for warehouse.Create a unique atmosphere with real warehouse light of DIALux and convince your client with an individual lighting project.

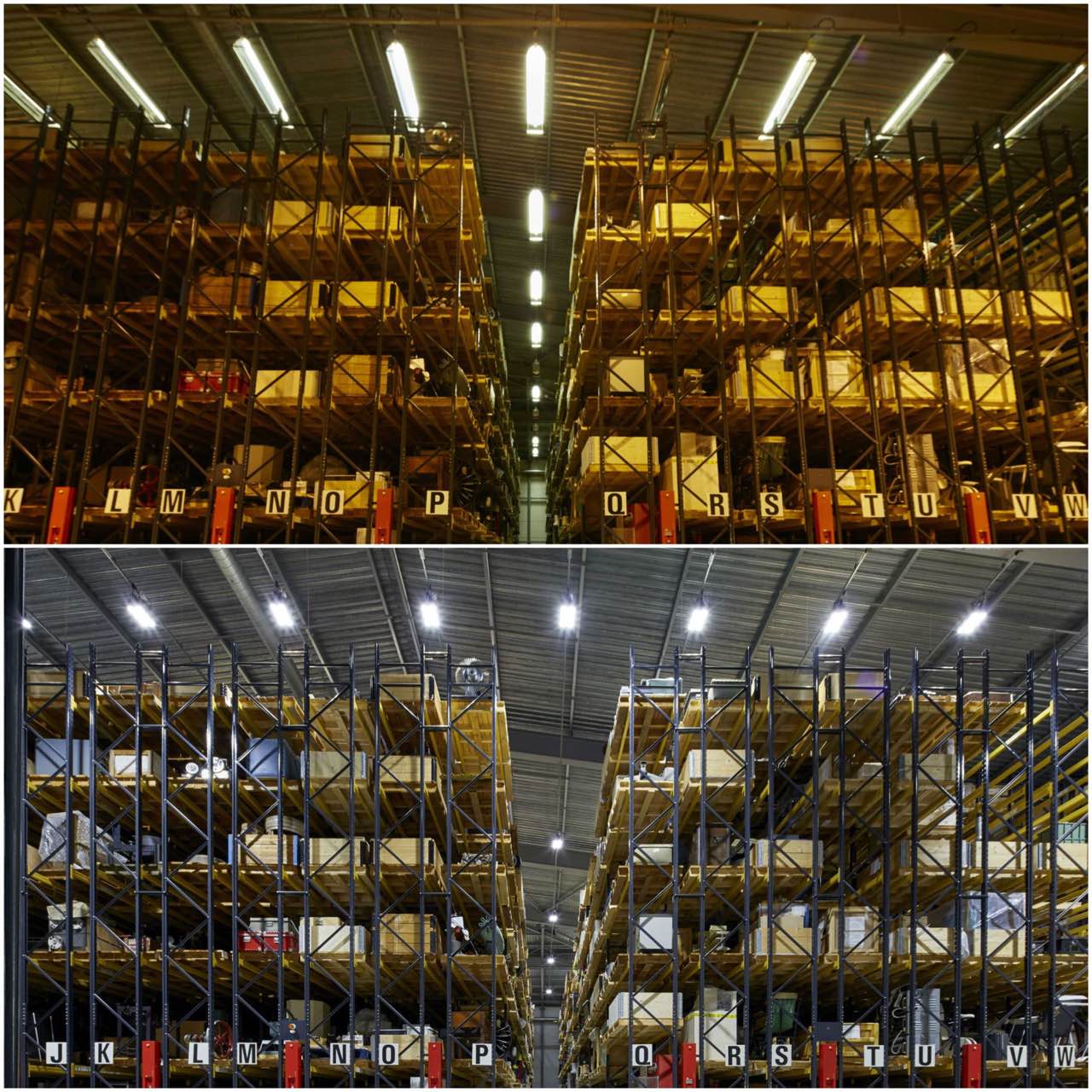

Warehouse light project reference

Lights arrangement: Adopt the top center of the warehouse aisles.
Site Dimensions: Warehouse Length 81 m，width 57m.
Basic Configuration: Total 68 pcs 150W Linear High bay light.
Beam angle: 30X50D
CCT: 5000K
Average: 250Lux

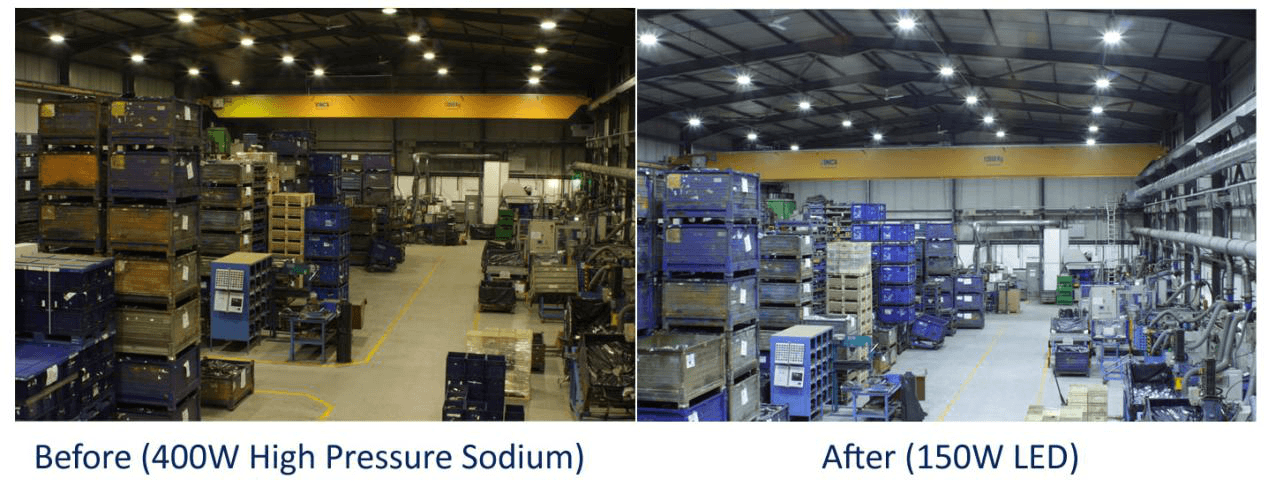

Why LEDs for Warehouse Lighting?
LEDs are best known in small bulbs, but today the benefits are there for large applications as well.

1.Cost – pricing on high lumen lights like UFO high bays has come way down. By mid 2018 at we saw or first rise in prices signaling we were near the bottom. Now, is the perfect time to make your purchases and benefit from the lower power costs.
2.Energy savings – LEDs use 90% less energy than incandescent, 70% less than metal halide or HPS and 40% less than fluorescent. For example, USA average rates of 0.20 a kilowatt hour, these fixtures pay for themselves in 1-4 years.
3. Look – The LEDs look sleek and modern. They immediately are recognized for the modern aesthetic they provide.
4. Ease – The LEDs are easy to install. They are lighter and more compact than the old fixtures. Plus features like instant on make them easier to use on a daily basis compared to old tube or metal halides that needed to warm up. Feel free to turn on/off LEDs at lunch!
5. Safety – No uv or mercury. LEDs are the safest light in the market, as they produce no uv or mercury like other lights.
6. Low Maintenance – Typically bulbs and ballasts have to be replaced every few years. With LED, the maintenance can be reduced by 95%.

Economic benefit analysis table

Conclusion
We offer excellent led warehouse lighting solutions that reduce maintenance and energy costs while increasing productivity. If you are looking to streamline your production system, increase employee satisfaction, and save money in the long run, our industrial warehouse lighting is the perfect solution for you. Welcome to contact us by [email protected].
