Description
| Service: Lighting and circuitry design, DIALux simulation, auto CAD layout | Application: Sports fields, Parking Lots,High Mast, Plaza, Apron, Industrial, Warehouse, Port, Outdoor lighting etc |
| Light Source: Lumileds / Sanan LED | Luminous Efficacy(lm/w): 150-160 |
| Power Supply: Meanwell / Inventronics | Working Lifetime(Hour): 80,000 |
| Color Temperature(CCT): 3000-6500K | CRI (Ra>): 70, 80, 90 |
| Input Voltage(V): AC 100-277V, customized AC 347-480V | Working Temperature(℃): -40-50 |
| Beam Angle(°): 15°, 30°,60°,40×80°,90×135° | IP Rating: IP66 |
| Warranty(Year): 5 Years | Certification: TUV, CE, RoHS, SAA, UL |
PRODUCT FEATURES
1. FRAME
(1) Corrosive resistance powder coated finish
(2) Strong and thick bracket, resistance for 17 grade typhoon
2. OPTICAL TECHNOLOGY
(1) Japan advanced calculus optical lens
(2) 15°, 30°, 60°, 40×80°, 90×135° beam angle available
(3) High output, light efficiency up to 160lm/w

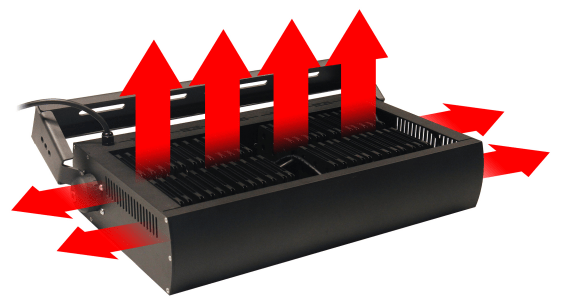

3. COOLING SYSTEM
⑴ With 4D heat dissipation technology
⑵ With large cooling area
⑶ Good cooling system can extend the lifespan in harsh environment

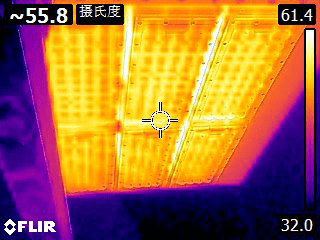

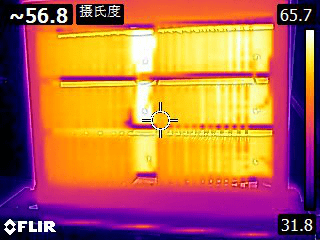

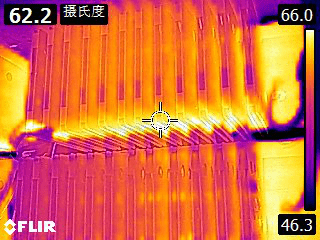

LED Junction temperature ＜65°,extend 2times more longer lifespan.
4. RAW MATERIAL SELECTION
⑴ Customize the brightest and most stable LED chips
⑵ Top brand MeanWell Power supply with 7 years warranty
⑶ All the components are top five band, our supply chain same as Huawei
5. Intelligent Dimming System
0-10V, 1-10V, DMX and DALI dimming models are available
DMX mode RGB video

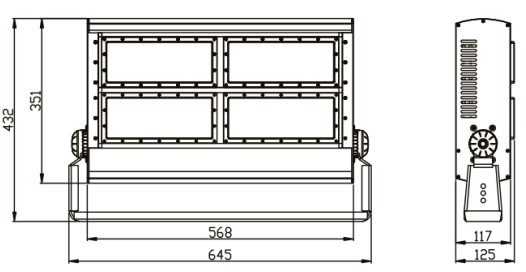

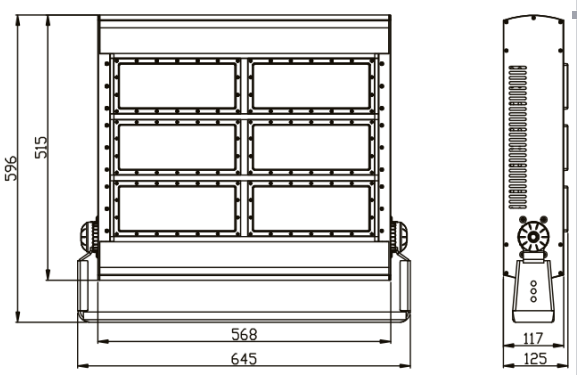

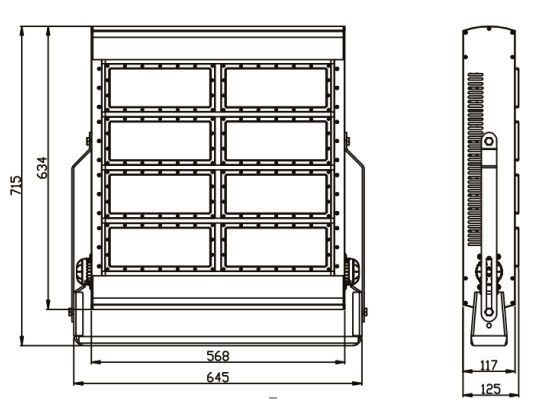

PRODUCT DIMENSIONS OF 400W, 600W & 1000W LED FLOOD LIGHT
400W 600W
1000W

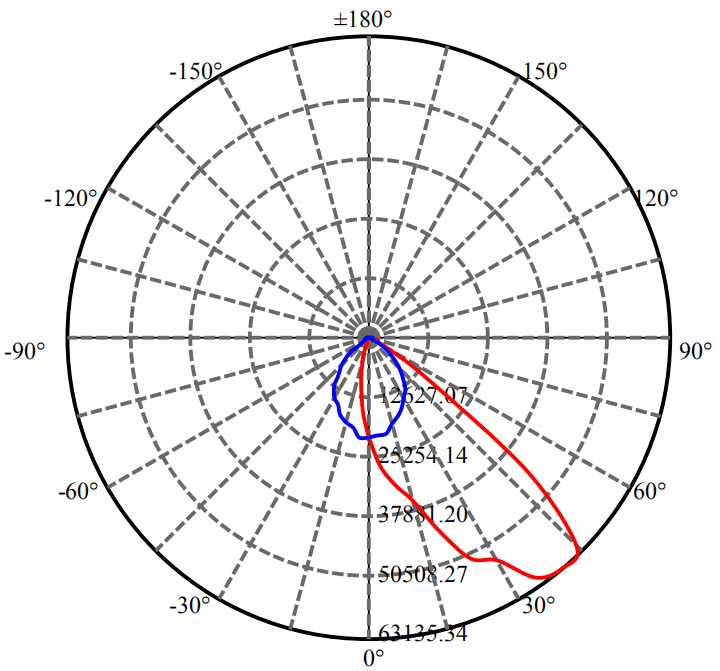

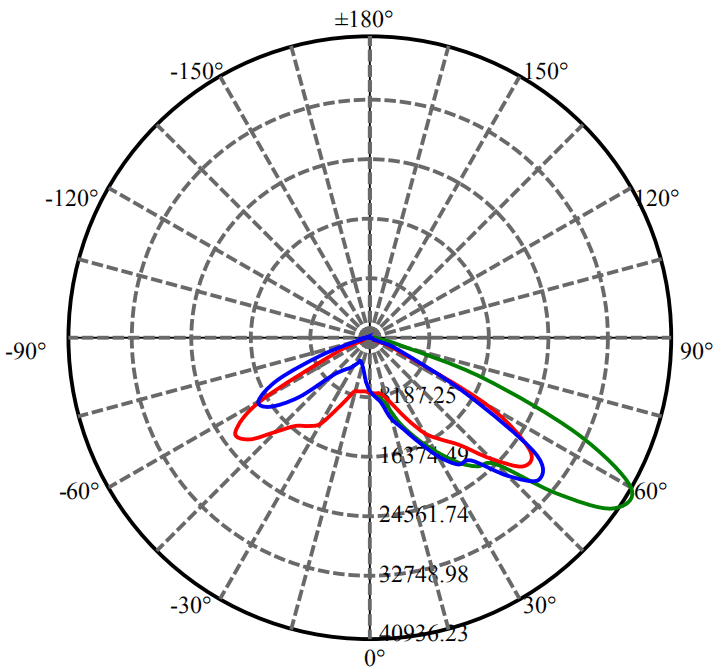

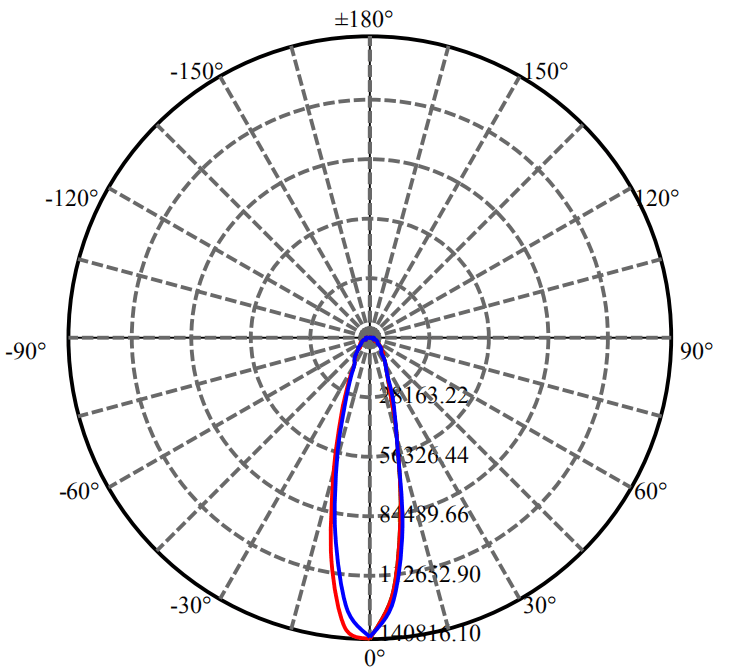

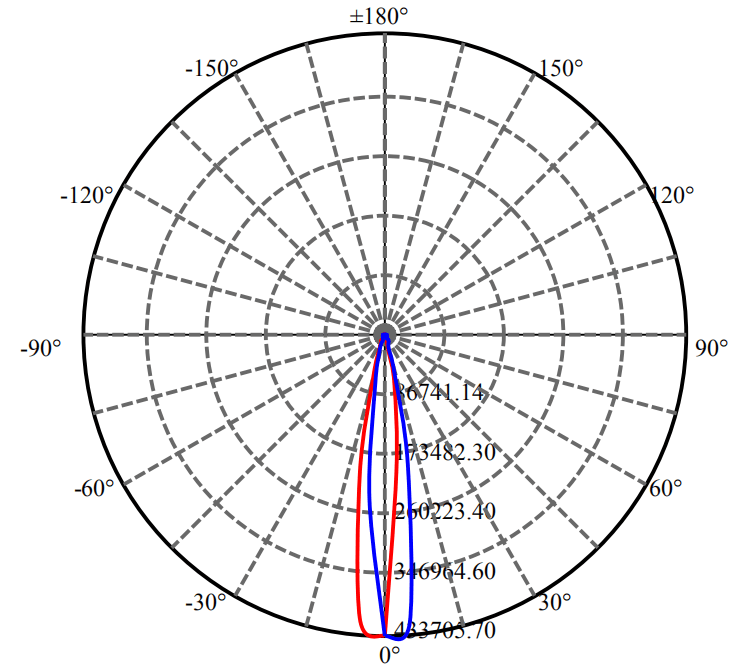

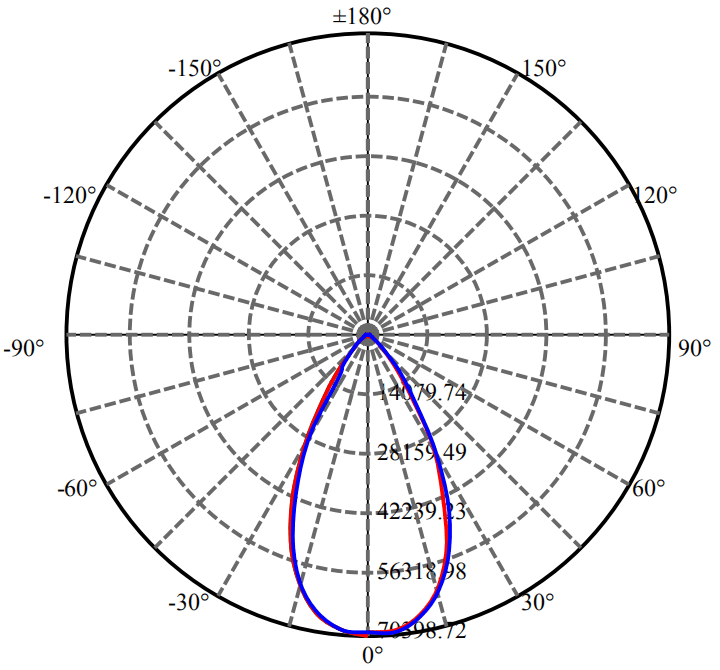

LIGHT BEAM
15D 30D 40X80D 60D 90X135D

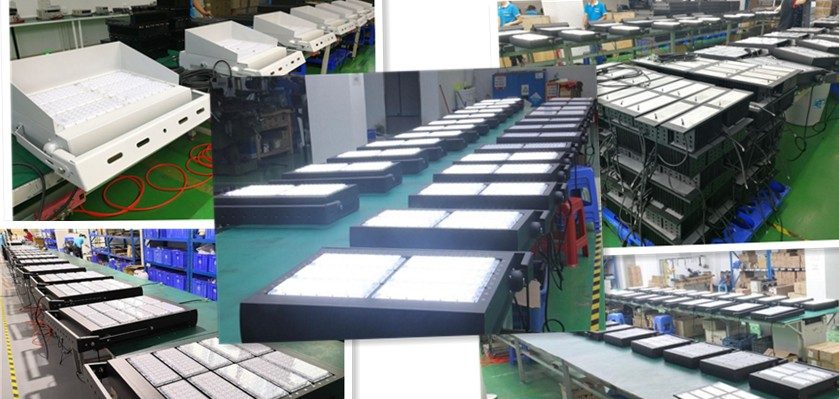

PRODUCTION & SHIPMENT

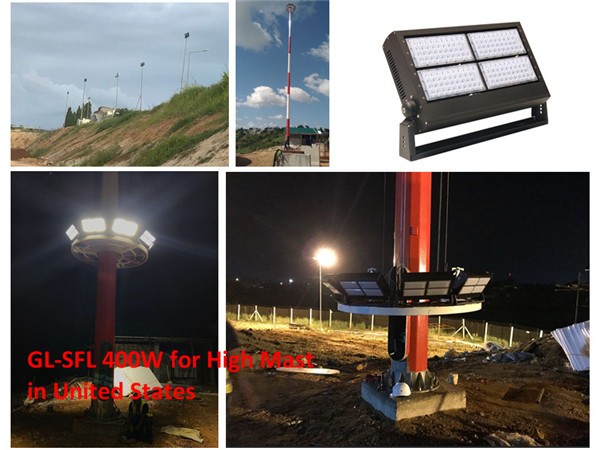

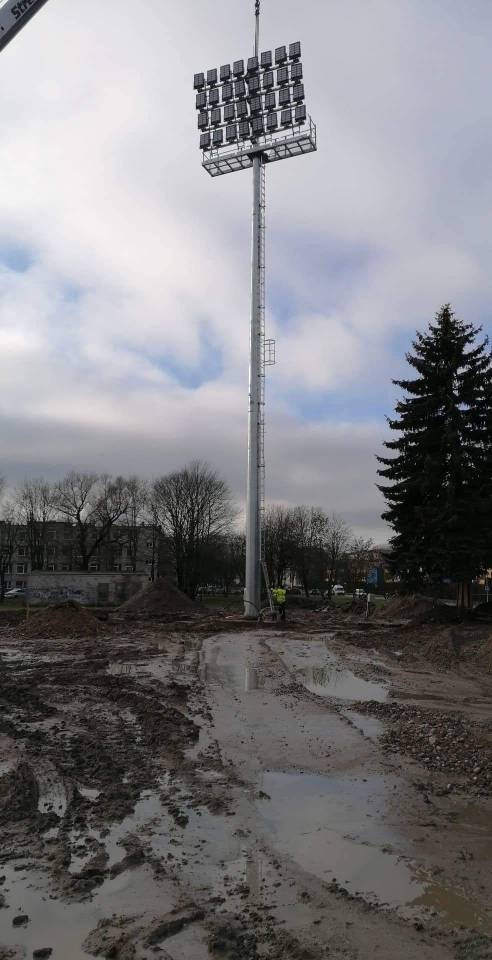

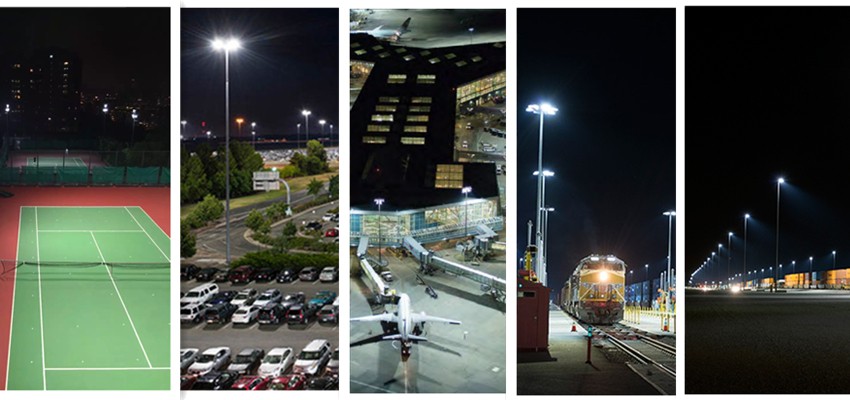

PROJECT CASE
MORE APPLICATIONS
Sport fields, Rail yard, Parking lots, Container yard, Apron, Seaport, landscape, Industrial, Warehouse, Plaza, Street, Construction site etc.
Need to get a professional light solution or competitive price, welcome to contact us via [email protected].
