Description
| Service: Lighting and circuitry design, Dialux simulation, auto CAD layout | Application: Sport Stadiums,High Mast,Port,Plaza etc |
| Light Source: CITIZEN COB | Luminous Efficacy(lm/w): 130 |
| Power Supply: Meanwell, Inventronics | Working Lifetime(Hour): 80,000 |
| Color Temperature(CCT): 2700-6500K | CRI(Ra＞): 80, 90 |
| Input Voltage(V): AC 100-277V, customized AC 347-480V | Working Temperature(℃): -40-50 |
| Beam Angle(°): 15°, 20°,30°,45°,60° | IP Rating: IP66 |
| Warranty(Year): 10 Years | Certification: TUV, CE, RoHS, SAA, UL |
LED STADIUM LIGHT VIDEO
- PRODUCT FEATURES

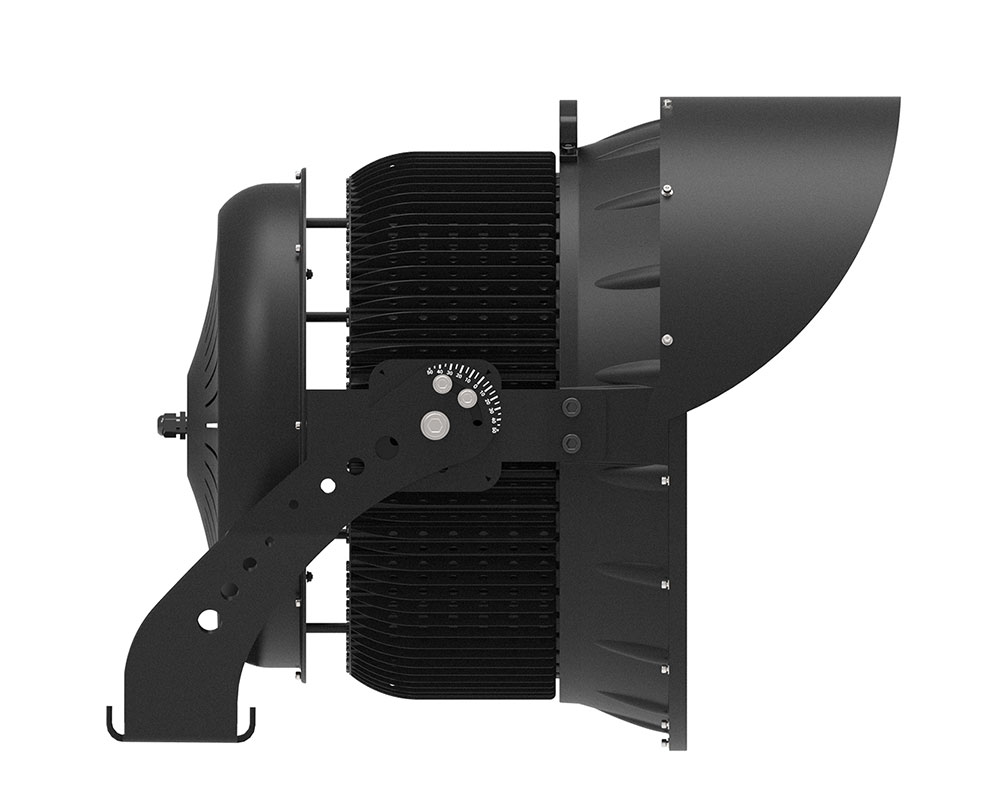

1. FRAME
1).Corrosive resistant powder coated finish
2).Stainless steel bracket, pass the wind test of 60m/s(17grade Typhoon)

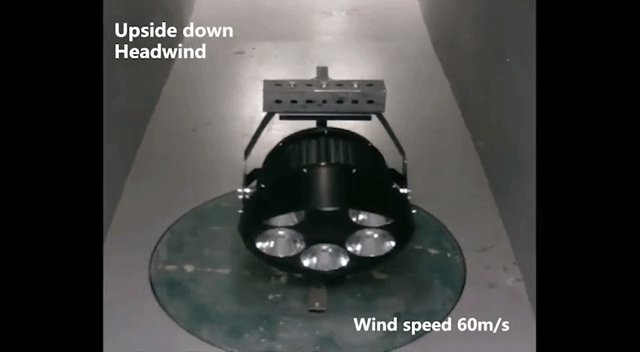

Wind Resistance Test of 60m/s
2.OPTICAL TECHNOLOGY
1). Japan advance calculus optical technology+glass len,light transmittance up to 98%,without creating glare and off-site spill
2). 15°20°30°45°60°beam angle available,excellent uniformity
- 3.COOLING TECHNOLOGY
1). Each fin with a heat pipe to cool fast
2). Good cooling system can extend the lifespan more than 80,000hrs
-
- 4.RAW MATERIAL SELECTION
1).CTIZEN LED chips, high quality COB in LED lighting industry.
2).Top brand MeanWell Power Supply, safe, high efficiency, stable.
3).All the components are top five band, our supply chain same as Huawei.
5. Intelligent Dimming System
0-10V, 1-10V, DMX and DALI dimming models are available

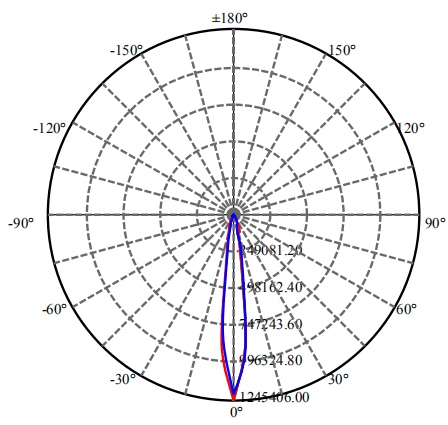

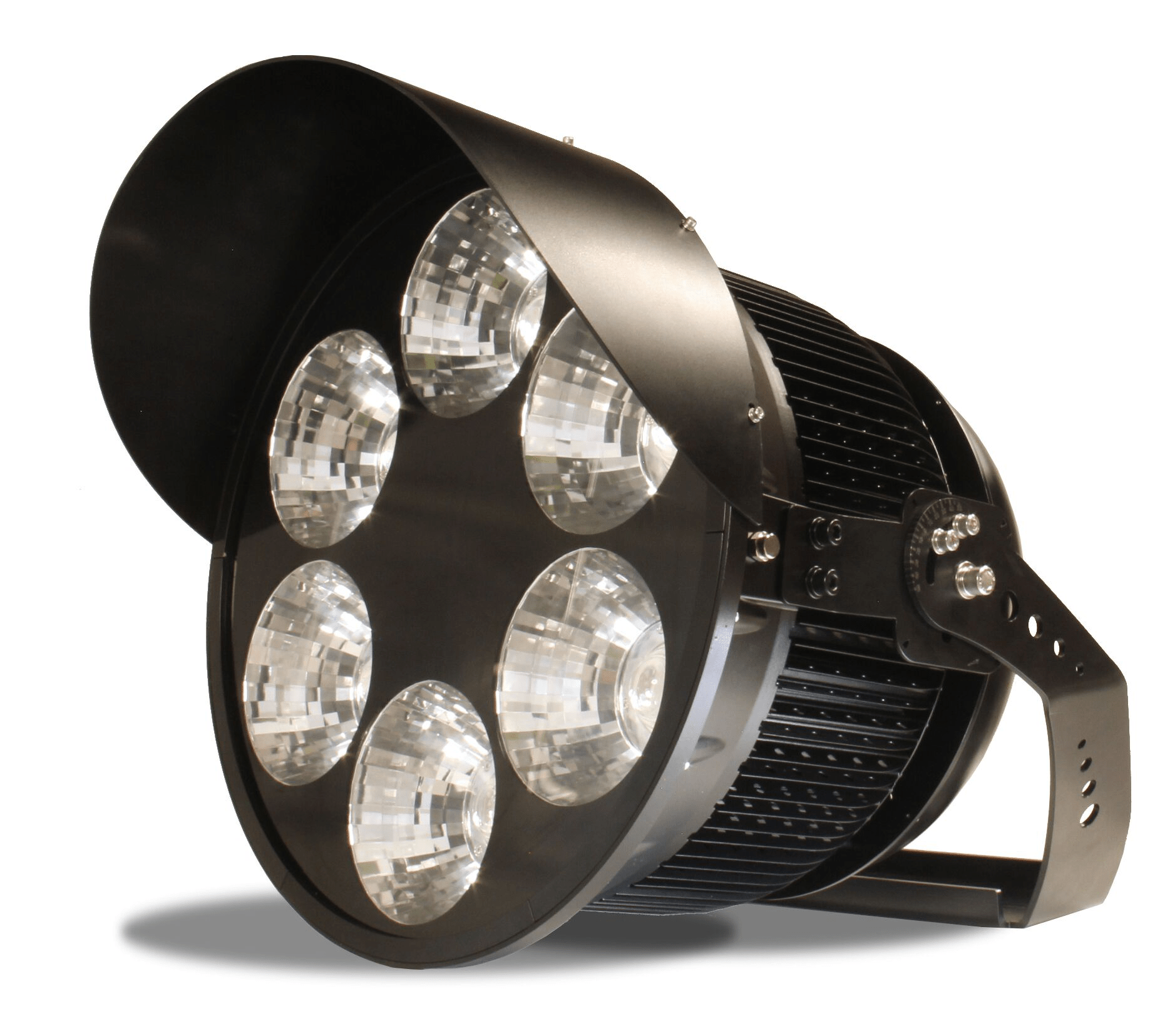

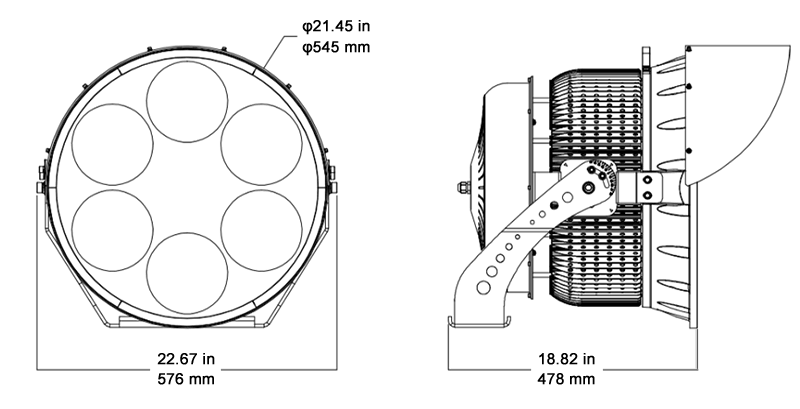

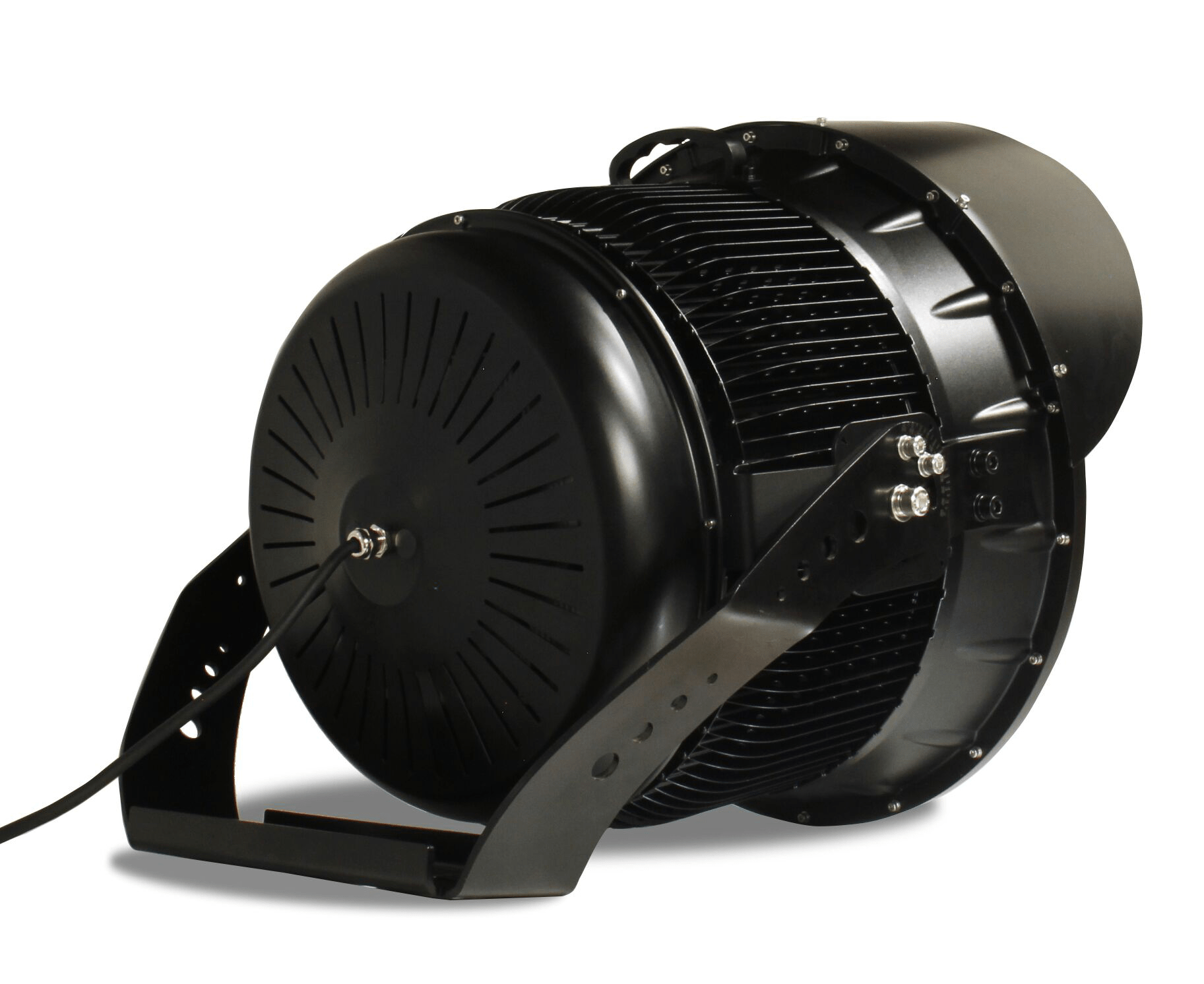

- PRODUCT DIMENSIONS OF 1200W LED STADIUM LIGHT

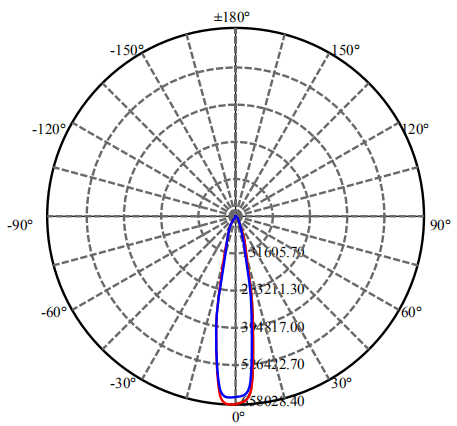

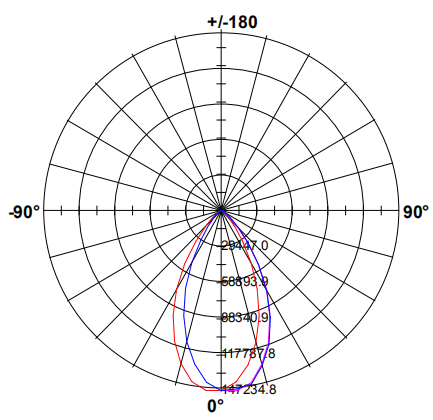

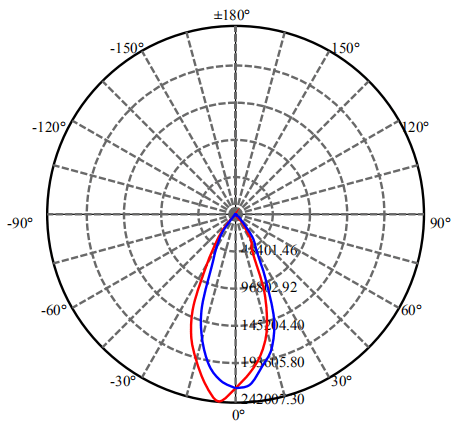

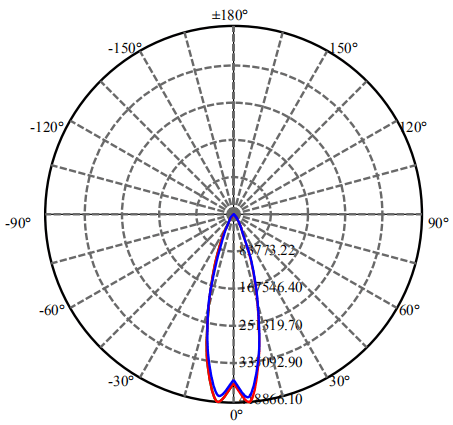

15° 20° 30° 45° 60°

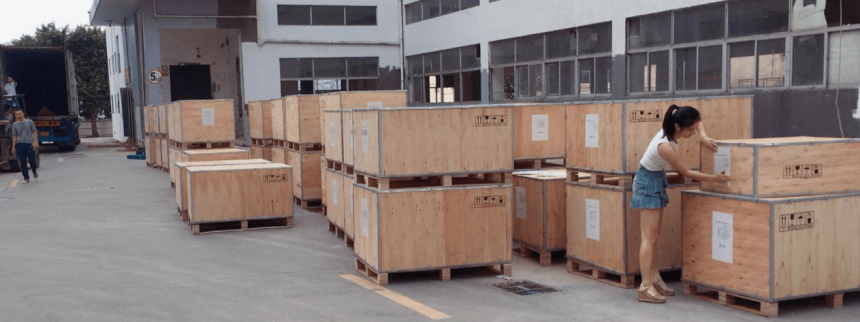

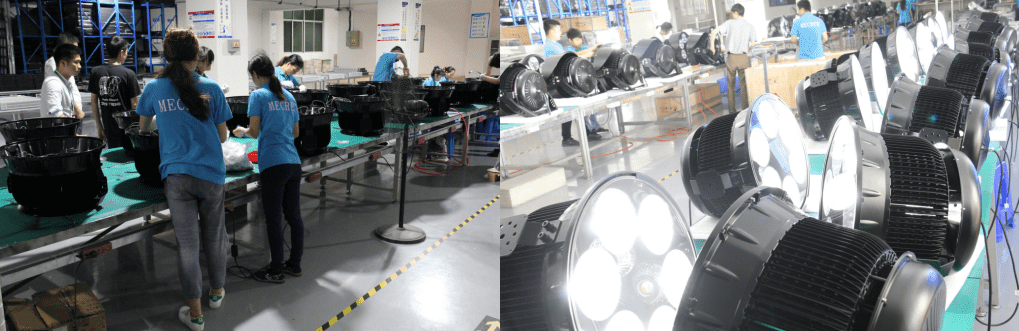

PRODUCTION & SHIPMENT
PROJECT CASE

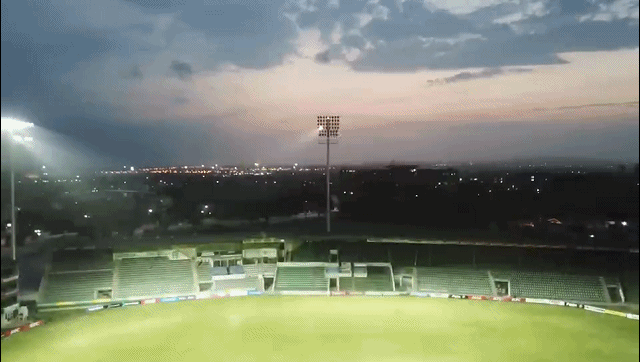

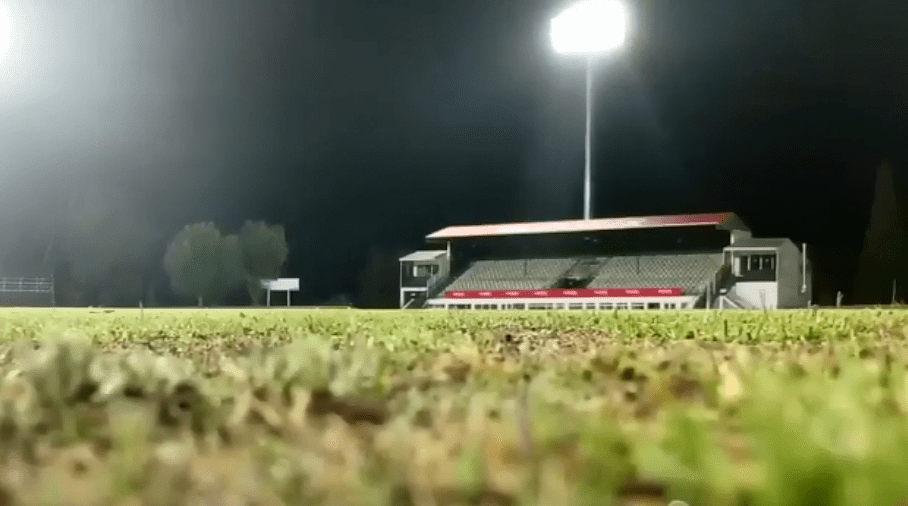

National Boland Park Cricket Ground Lighting Project.
Dimming function available, fully control over the lighting in your venue to create dynamic effect

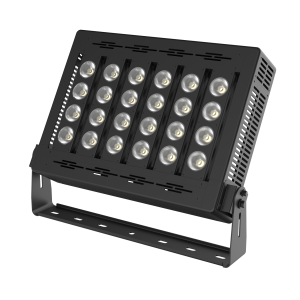

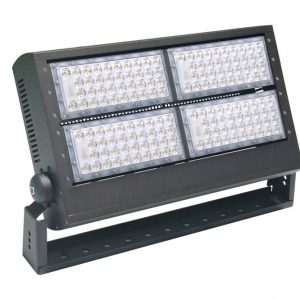

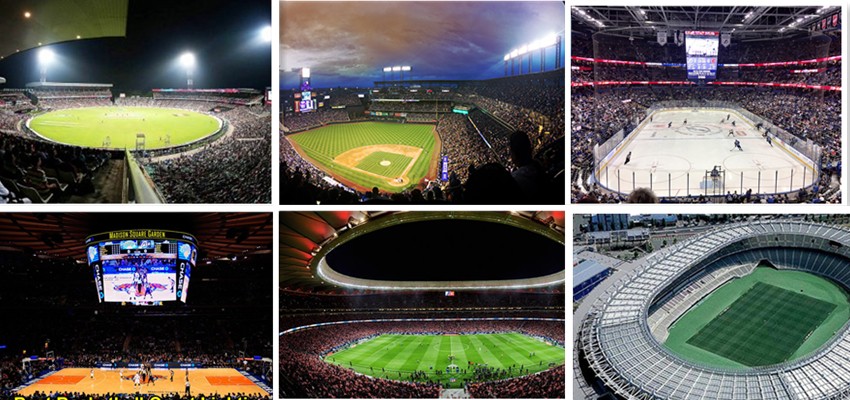

MORE APPLICATIONS
Need help with your next stadium lighting project?—Yes
How much power does a cricket stadium use?
What wattage of led stadium lights to use?
How many numbers of LED stadium lights are in a cricket stadium light pole?
Where to put the light poles and height of light poles?
How much does a cricket stadium lights cost?
Welcome to contact us by [email protected] to get your Stadium Lighting Plan – For Free.
